Visualise Your Survey Data

FGA Logger only

This guide applies exclusively to the FG Sensors FGA Logger. Other sensors and loggers use different workflows.

The FG Sensors FGA Logger captures magnetic field data across up to two fluxgate sensors during a ground survey. Once your survey is complete, you upload the raw data file to PolarWave Data — a browser-based platform — which handles processing and gives you three powerful ways to explore your results:

  • 3D surface model — an interactive render showing the depth and shape of anomalies
  • 2D colour map — a flat top-down view for spatial analysis
  • Map overlay — your scan placed on a live satellite map using GPS coordinates

What You Need​

  • A completed survey — raw data file exported from your FGA Logger
  • A modern web browser (Chrome, Firefox, Edge, or Safari)
  • A PolarWave Data account at polarwave.app
  • GPS data embedded in your file — required for the Map view (most kit exports include this automatically)

Step 1: Create Your PolarWave Data Account​

PolarWave Data is the web platform used to process and visualise data from your FGA Logger. No software installation is needed.

  1. Open your browser and go to polarwave.app
  2. Click Sign Up to create a free account, or Sign In if you already have one.
  3. Once logged in, you will see the main dashboard with your data library.

Step 2: Export Your Data File from the Logger​

Before uploading, make sure your data file is ready:

  • File format: PolarWave Data accepts the standard output format from the FGA Logger. The file is typically saved directly to an SD card or transferred via USB.
  • GPS: Confirm that GPS logging was active during your survey. Without GPS coordinates, the Map view will not be available.
  • File name: Keep the original filename — it helps PolarWave Data auto-detect the device type.
tip

If you are unsure whether GPS was recorded, open the file in a text editor and look for latitude/longitude columns or NMEA sentences near the top.

Step 3: Upload to PolarWave Data​

  1. From the PolarWave Data dashboard, click Survey in the left navigation menu.

  2. Click the Search button to open the upload panel.

PolarWave Data — click Search to open the upload panel

  1. Click Select File — or drag and drop your data file directly into the upload area.

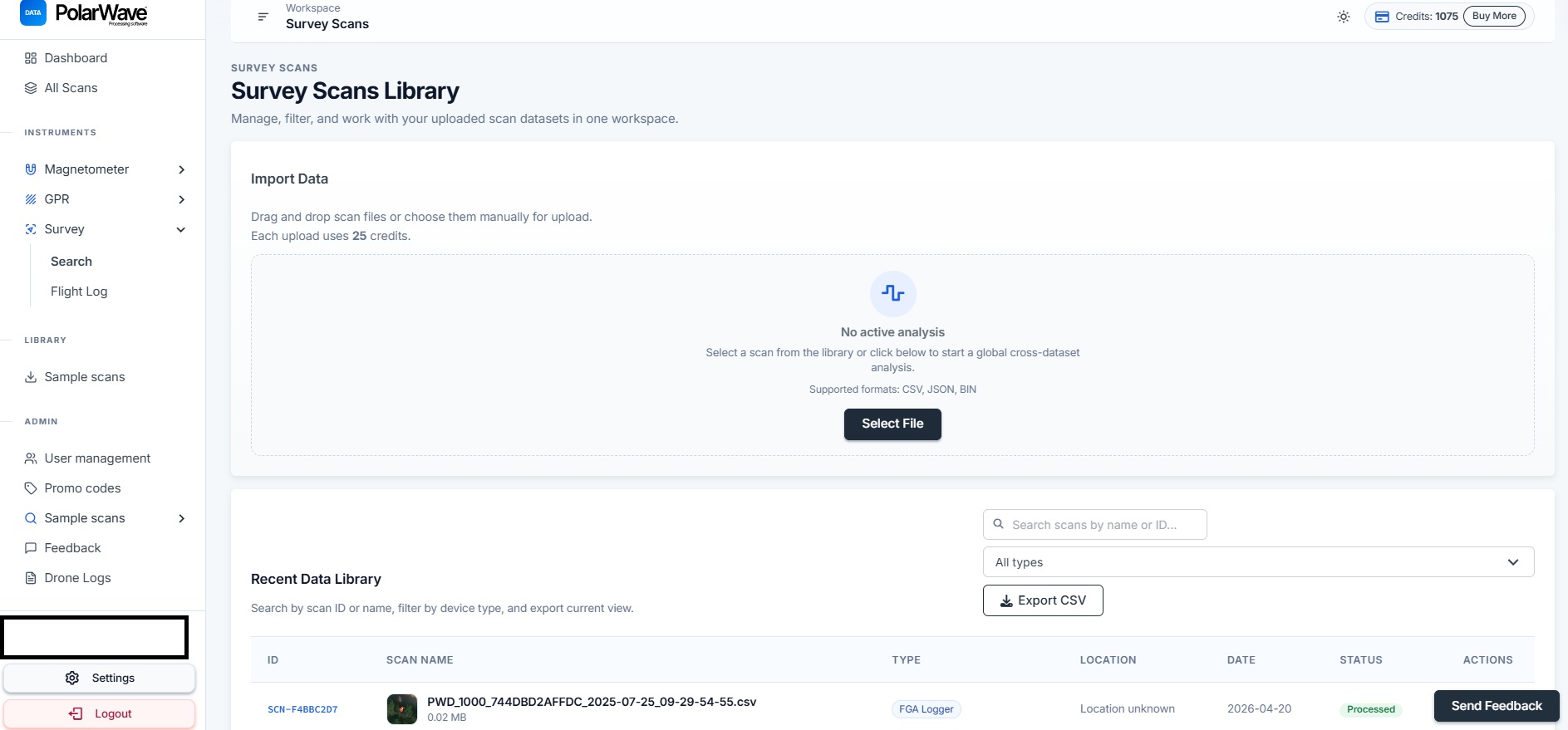

PolarWave Data — Select File upload area

  1. In the Device Type dropdown, select your FGA Logger model. If you are unsure, leave it unset — PolarWave Data will identify the format automatically.

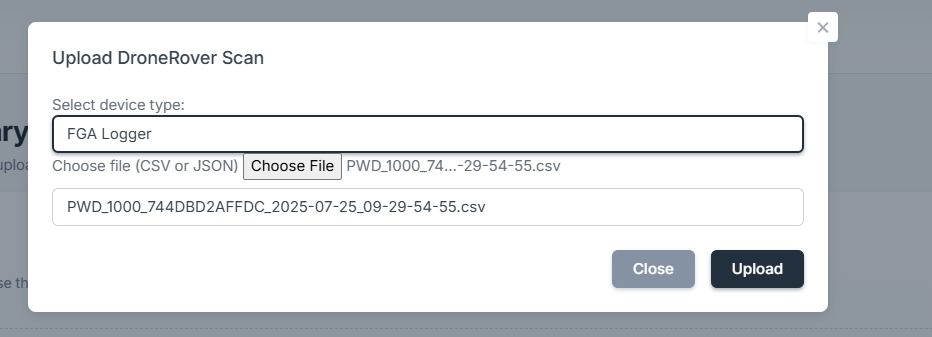

PolarWave Data — Device Type dropdown for FGA Logger

  1. Click Upload. A progress bar will appear while the file transfers and processes.

  2. Once complete, your survey will appear as a new entry in the Data Library.

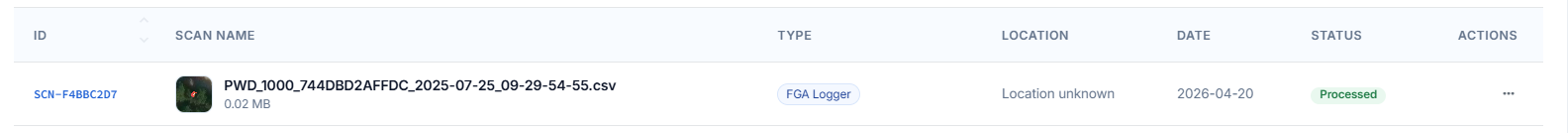

PolarWave Data — survey entry in the Data Library after successful upload

note

Processing time depends on file size. Most surveys from the FGA Logger complete within a few seconds to a minute.

Step 4: Open Your Scan​

  1. In the Data Library, click on the name of your newly uploaded survey.
  2. The viewer will open in Explorer view by default — your scan overlaid on a satellite map using your GPS track.
  3. To switch to 3D, click 3D View in the left sidebar under the Survey section.

Continue to View Your Scan in 3D and on the Map to interact with your results.
